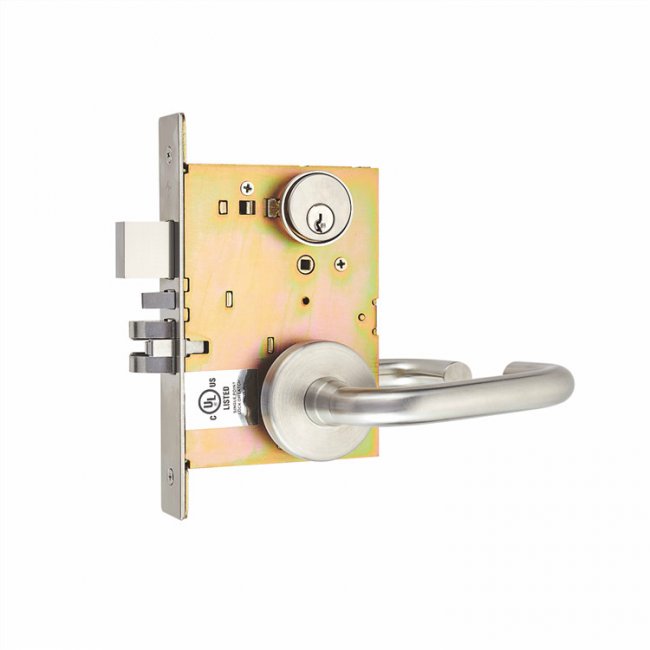

Item No: M7098-720 SS
Material: Stainless steel/Brass/Iron
Color: SS, PSS
Specification
Specification

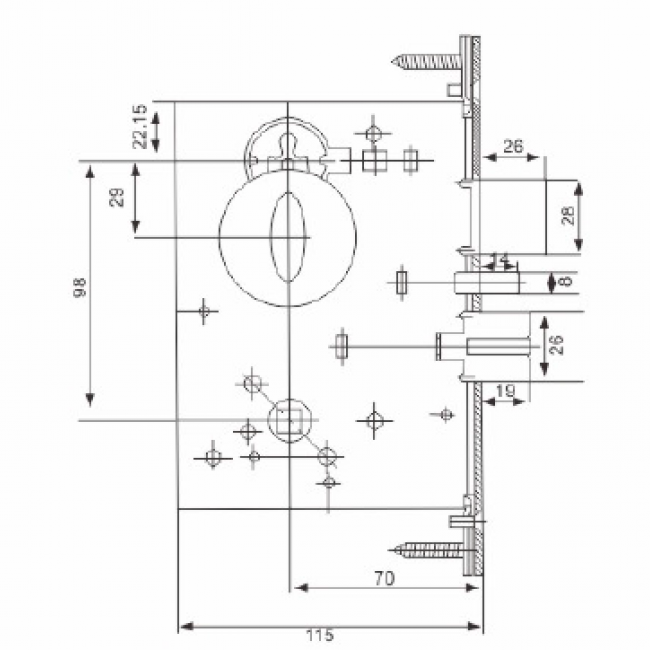

? M7098-720 Entrance lock ? Technical Data: Lever follower: 8*8mm
? Finish: SS/SPVD/MSS/AB ? Center length(A): 72mm
? Material? Stainless steel/Brass/lron ? Edge Distance: 98mm
? Feature: American mortise lock ? Accessories: Screw, Striking Plate, Plastic Strike Box
? Performance nesting:
Product is certified under ANSI A 156.13 for Grade 1 with life frequency exceeding 1,000,00
Product is certified by the Underwriter s Laboratories(UL and ULC Listed)
Product is certified by the Police Fire Department.
? Function Description:
Latch bolt retracted by lever either side unless outside is locked by 20 degree rotation of thumb turn.
Dead bolt operated by 90 degree rotation of thumb turn inside. When locked, lever inside or key outside retracts deadbolt and latch bolt sim-ultaneously.
