Model No.: 8529-20, 8529-25, 8529-30, 8529-35
Material:
Brass/steel latch, brass/steel bolt, brass/steel follower
Finish:
SN, CP, AB, AC, COF, PVD, SS, GP
Features
For wooden& metal doors
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
Technical data:
Follower: 8mm
Distance: 85mm
Backset: 20mm, 25mm, 30mm, 35mm
Forend:
Type: round square, round square
Thickness: 3mm
Width: 22mm
Forend finish:
Stainless steel: SN, CP, AB, AC, COF, PVD, SS, GP
Accessories:

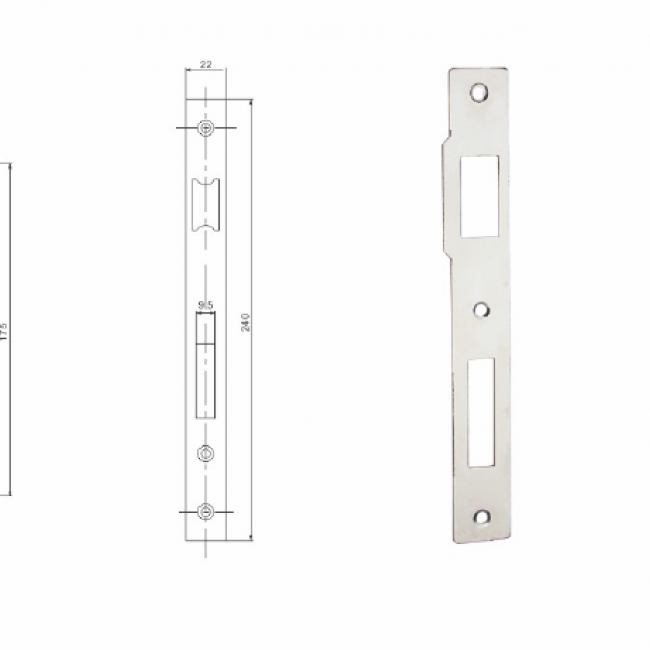

Striking plate
Lock and striking plate fixing screws
