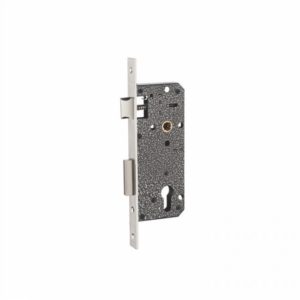

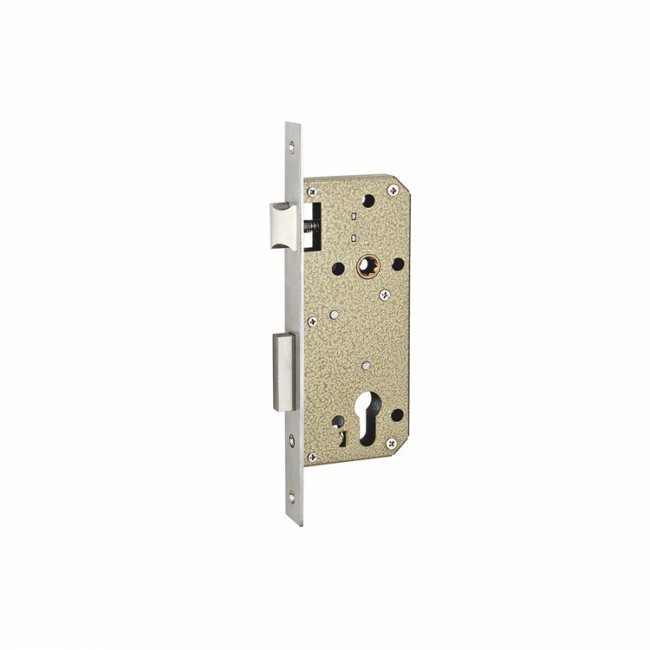

Model No.: 8504-40, 8504-45, 8504-50, 8504-55, 8504-60
Material:
Brass/steel latch, brass/steel bolt, brass/steel follower
Finish:
SN, CP, AB, AC, COF, PVD, SS, GP
Features
For wooden& metal doors
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns
Technical data:
Follower: 8mm
Distance: 85mm
Backset: 40mm, 45mm, 50mm, 55mm, 60mm
Forend:
Type: round square, round square
Thickness: 3mm
Width: 23mm
Forend finish:
Stainless steel: SN, CP, AB, AC, COF, PVD, SS, GP
Accessories:

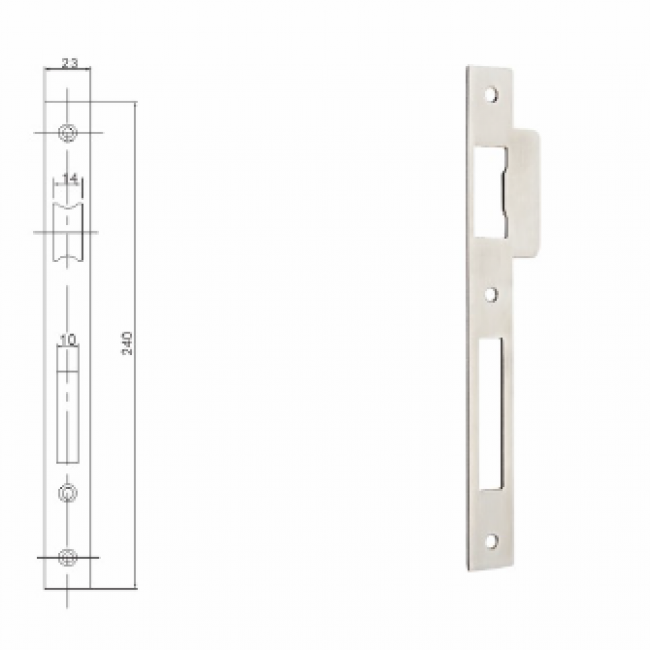

Striking plate
Lock and striking plate fixing screws
