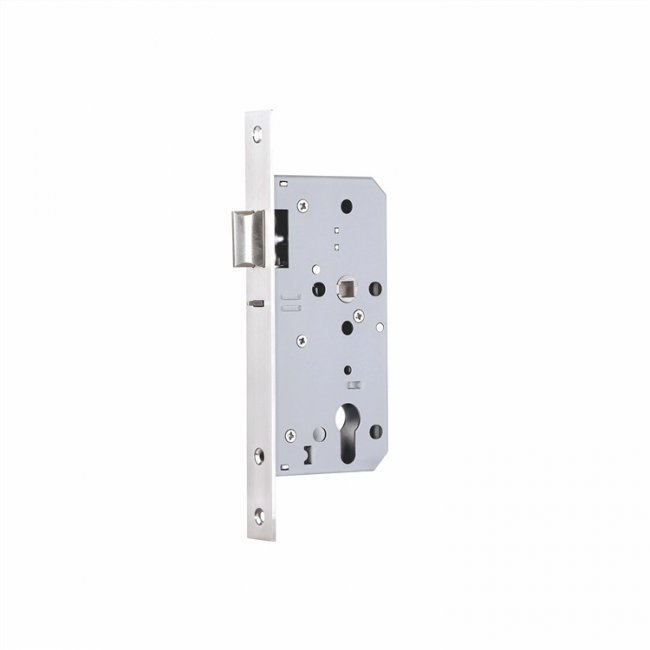

Model No.: 7204-55, 7204-60, 7204-70, 7204-80
Material:
Stainless steel
Finish:
SN, CP, AB, AC, COF, PVD, SS, GP
Features
According to EN12209-Grade 3, DIN 18251-1
For wooden& metal doors
For single-leaf doors
Suitable for external fire and smoke doors
Prepared for profile cylinders
With key action
Deadbolt 2-turns

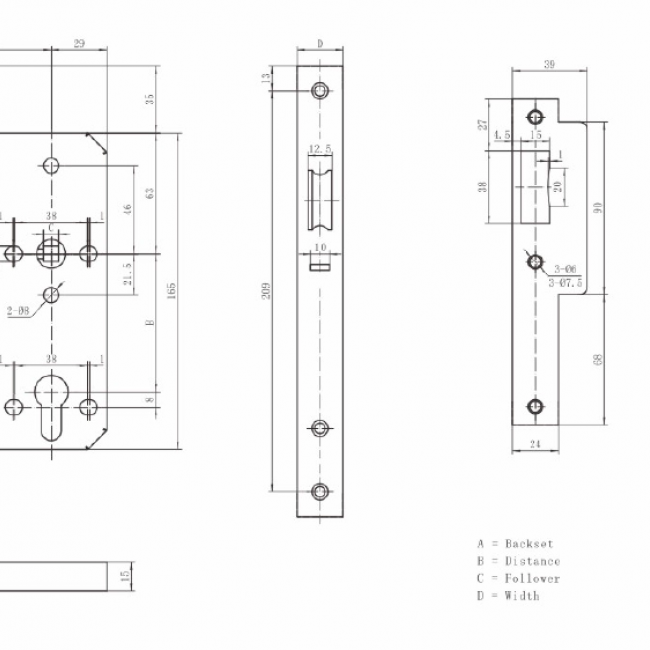

Technical data:
Follower: 7, 8, 9mm
Distance: 72mm
Backset: 50mm, 60mm, 70mm, 80mm
Forend:
Type: round square, round square
Thickness: 3mm
Width: 20, 22, 23, 24mm
Forend finish:
Stainless steel: SN, CP, AB, AC, COF, PVD, SS, GP
Accessories:
Striking plate
Lock and striking plate fixing screws
