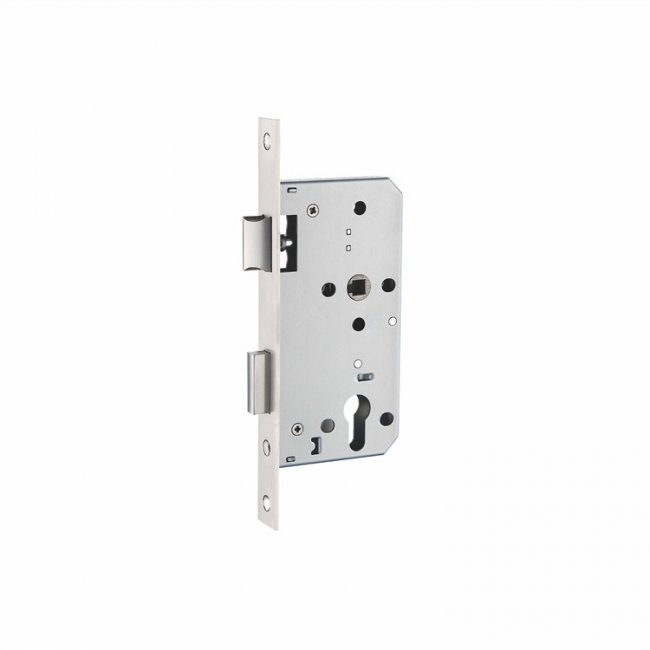

Model No.:
7203-55, 7203-60, 7203-70, 7203-80, 7203-100
Material:
Stainless steel/ brass
Finish:
SN, CP, AB, AC, COF, PVD, SS, GP
Features
According to EN12209-Grade 3,DIN 18251-1
For wooden& metal doors
For single-leaf doors
Optional for rebated or non-rebated doors Suitable for external fire and smoke doors Prepared for profile cylinders
With key action
Stainless steel or brass latch bolt
Deadbolt 2-tutns
Technical data
Follower
Distance
Backset
7,8,9mm
72mm
55,60,65,70,80,100mm
Forend
Type
Square head
Thickness
3mm
Width
20,22,23,24mm
Accessories

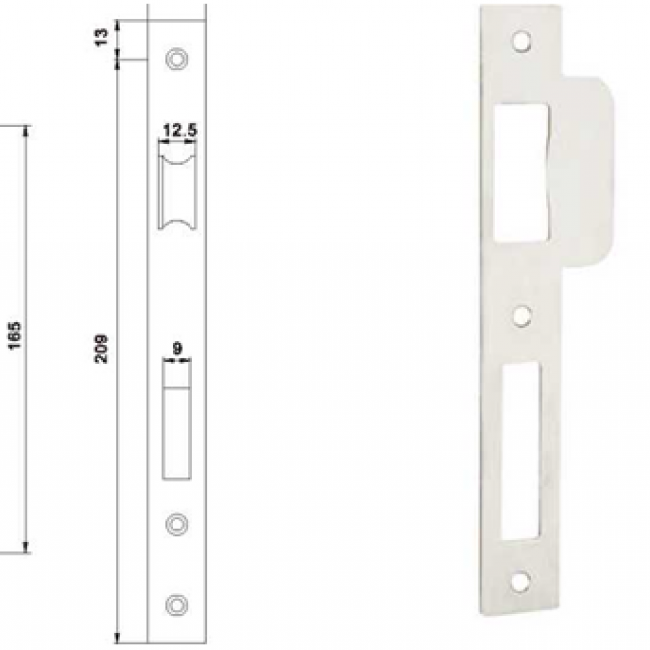

Striking plate
Lock and striking plate fixing screw
