Item No: KD-F3200-A
Material:Heavy gauge steel or 304 stainless steel

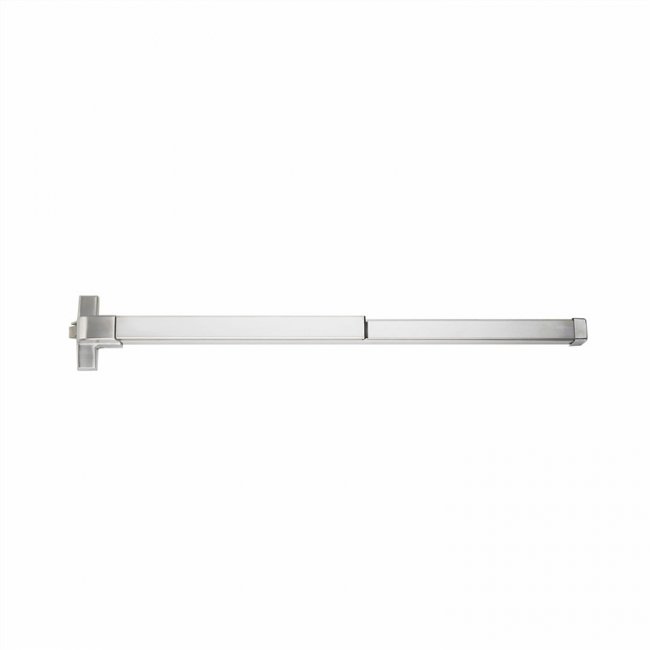

Color: Silver painted orKD-F3200-A Fire rated exit device, rim type, single leaf door
Features of the KD-F3200-A RIM Type half length panic exit device
? Type: Rim type,Half length or Full length
? Material: Heavy gauge steel or 304 stainless steel
? Length: 1045MM as a standard,could be customized
? Color: Silver painted or stainless steel as a standard,could be customized
? Accommodates wood and metal doors with thru bolts standard
? Match with outside access device like cylinder,trim and lever
? Apply to door for fire protection.smoke ventilation.
? Apply to single leaf door
? Conforming to U.L.10C and ANSI/BHMA A156.3-(2008)GRADE 1
? U.L.LU.L.C listed for “fire exit hardware” labeled for rating up to and including 3 hours
? Endurance test,over 500,000 times still keep good performance.
? Surface mounted for ease of installation. stainless steel as a standard,could be customized
